Visual Professional Edition
The Visual Professional Edition is a comprehensive lighting analysis tool designed
for demanding interior and exterior applications. The Professional Edition combines
an advanced 3-D interface with the latest advances in radiosity theory to provide
efficient and highly accurate analysis of complex architectural spaces. A unique
approach has been taken in the design of the 3-D modeling environment, resulting
in an intuitive and powerful design experience. The following list illustrates some
of the features of the Visual Professional Edition:
True 3D Environment
Change viewpoints, zoom in/out and pan the design at anytime, even in the middle
of another command. Work dynamically in any coordinate plane (X-Y, X-Z, or Y-Z)
to easily create complicated architectures or to aim luminaires at specific locations.
Quickly switch the active working plane at anytime.
Non-Orthogonal Surfaces
Create and analyze virtually any architectural space, including sloped ceilings,
curved walls, domes, arches, etc.
Luminaire Schedule
Create and analyze virtually any architectural space, including sloped ceilings,
curved walls, domes, arches, etc. Modify luminaire symbols and create custom, multi-head
luminiare configurations in the symbol editor. View and download product information
and specification sheets over the Internet for supported photometry files. Save
and reuse schedules for quick access to favorite luminaires.
Flexible Calculation Grids
Create calculation grids of any shape and orientation, or place a grid on any surface
with one click. Choose any normal orientation for calculation points, or create
Max Spill or TV Illuminance calculation zone.
Professional Output
Create custom pages using the Print Editor. Print to any Windows-compatible printer
or plotter.
CAD Compatibility
Import ACAD 2010 and earlier DWG/DXF files. Export AutoCAD 2008, AutoCAD 2000 and
R14 compatible files.
Experience the Visual Professional Edition today! Download a 30-day trial version
(including the free Basic Edition ). Contact your local Acuity Lighting Group sales
representative for a complimentary Visual CD-ROM or order it from our products page.
Visit the Visual Purchase Information page to obtain an license for the Professional
Edition.

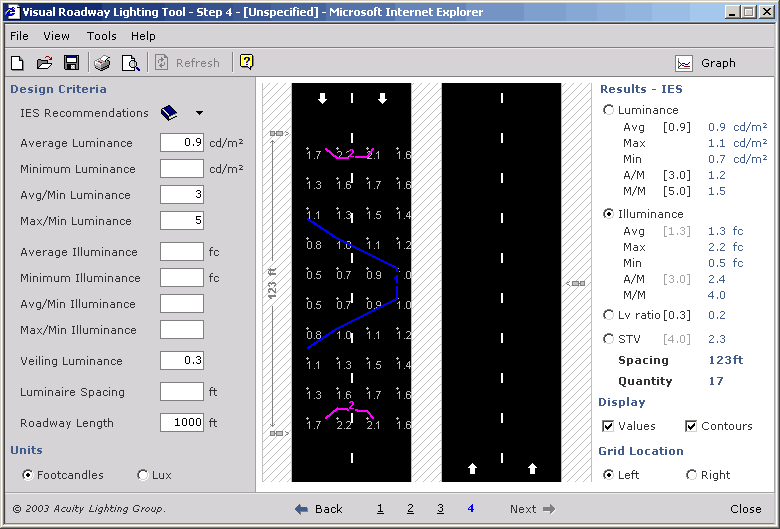

Roadway Lighting Tool
The Visual Roadway Lighting Tool is a PC based tool for the development, analysis
and documentation of roadway lighting designs. The step-by-step tool guides the
user through the definition of the roadway geometry, selection and placement of
luminaires and analysis of the resulting lighting metrics. IESNA and CIE recommendations
and calculation methods are incorporated in the tool.
Flexible Roadway Geometry
- Independantly define the number and width of the left lanes and right lanes.
- Define the median width.
- Design in english or metric units.
Luminaire Placement
- Define multiple luminaires to design the roadway lighting.
- Luminaires can be placed independantly on the left side, median and right side.
Luminaires may have different mounting heights, photometrics, tilt, orientation and configuration for each position.
Built-in-Standards
- Select an IESNA or CIE calculation method.
- Use any IESNA, EULUMDAT or CIBSE TM-14 formatted photometric files.
- Calculate the appropriate spacing based on the built-in IESNA or CIE recommendations.
Optimization Graph
- Graph the results over an array of spacings.
- Select only the graph metrics you wish to display.
Professional Output
- Project title, number, your name and company information fields are printed with the design.
- Point-by-point calculations are graphically printed on the roadway.
- Compare results from multiple design permutations.
- Export results to the Visual Professional Edition with the touch of a button.
